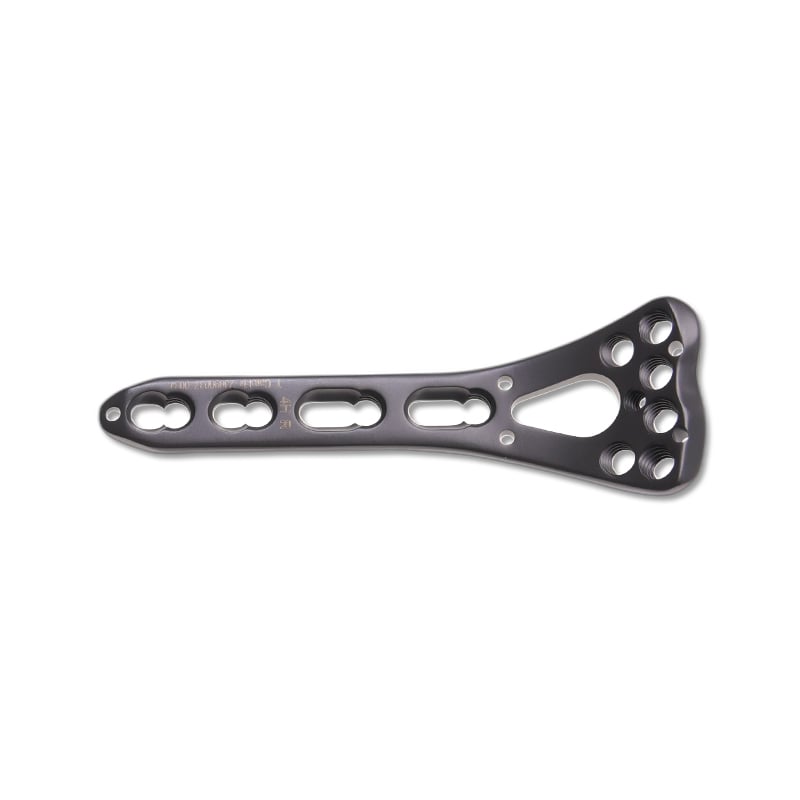

Distal Volar Radius Ⅱ Locking Plate (6-Holes Head 2.7/3.5mm)
Anatomically pre-shaped volar distal radius plate providing fixed-angle support for complex articular distal radius fractures.
Upper Limb LCPHigh-Precision Locking Compression Plate (LCP) Series
Engineered with titanium alloy (Ti-6Al-4V) and implantable stainless steel, CareFix locking plate systems combine dynamic compression combi-holes with anatomical pre-contoured shaping to maximize angular stability, preserve periosteal blood supply, and accelerate bone healing.

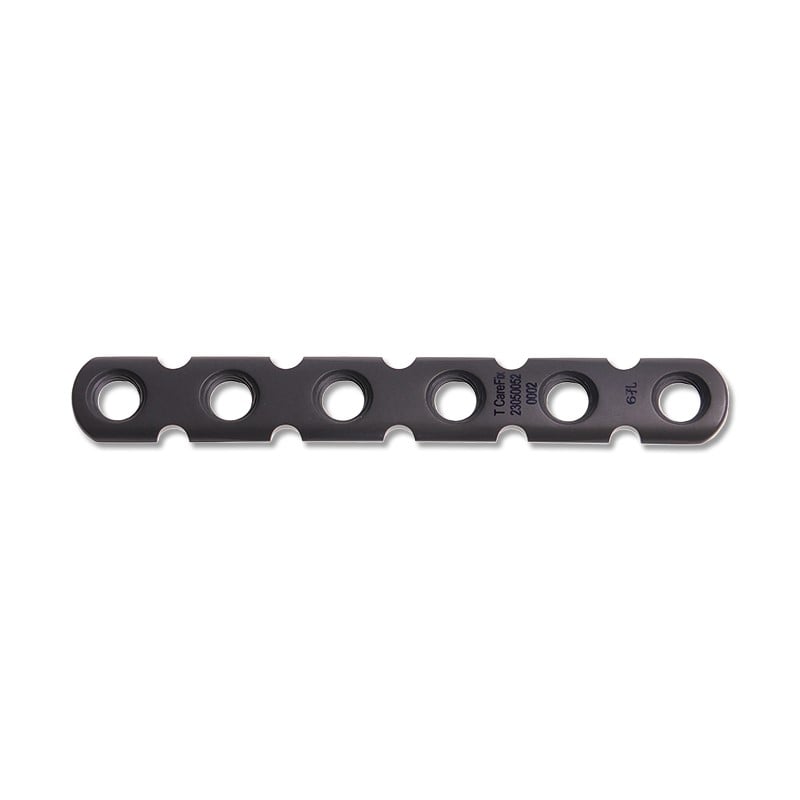

Reconstruction Locking Compression Plate 2.7mm
Malleable design with deep notches between holes for multi-planar contouring in clavicle, pelvic, and small bone reconstruction.
Reconstruction LCP

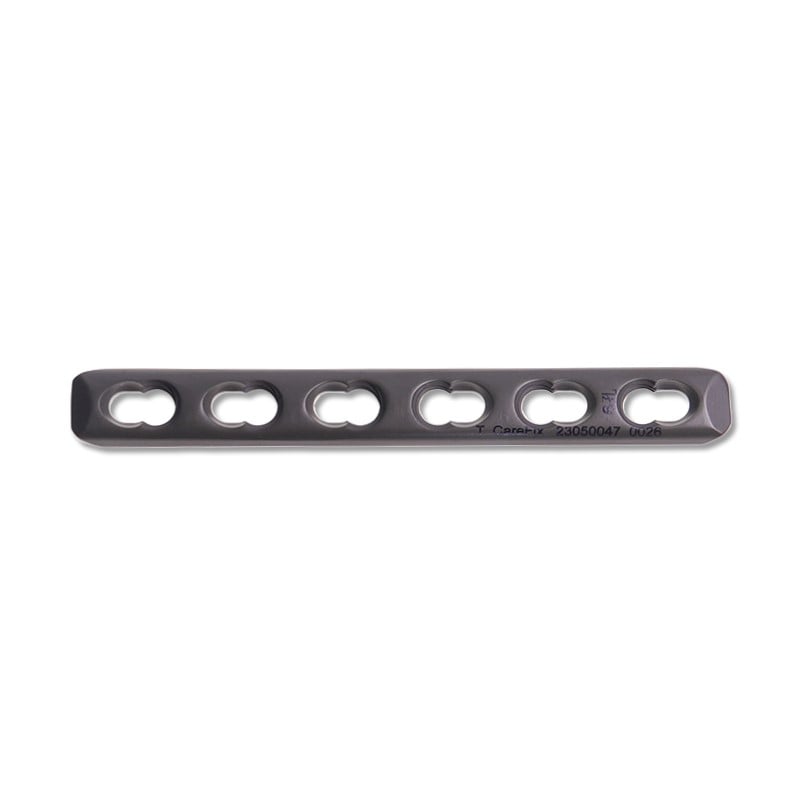

Limited Contact Compression Locking Plate 2.7mm
Undersurface undercut design minimizes cortical contact, protecting periosteal vascularity for rapid bone callus formation.
Minimally Invasive LCP

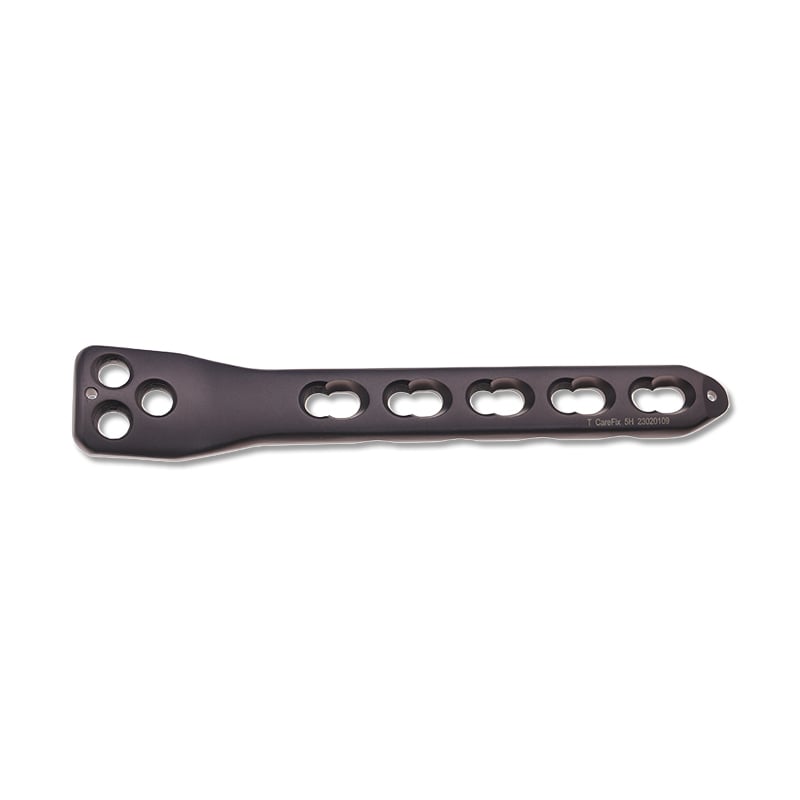

Supracondylar Femur Locking Plate 3.5mm / 5.0mm
Heavy-duty anatomical femoral distally contoured plate for distal femoral fractures, periprosthetic fractures, and osteotomies.
Lower Limb LCP

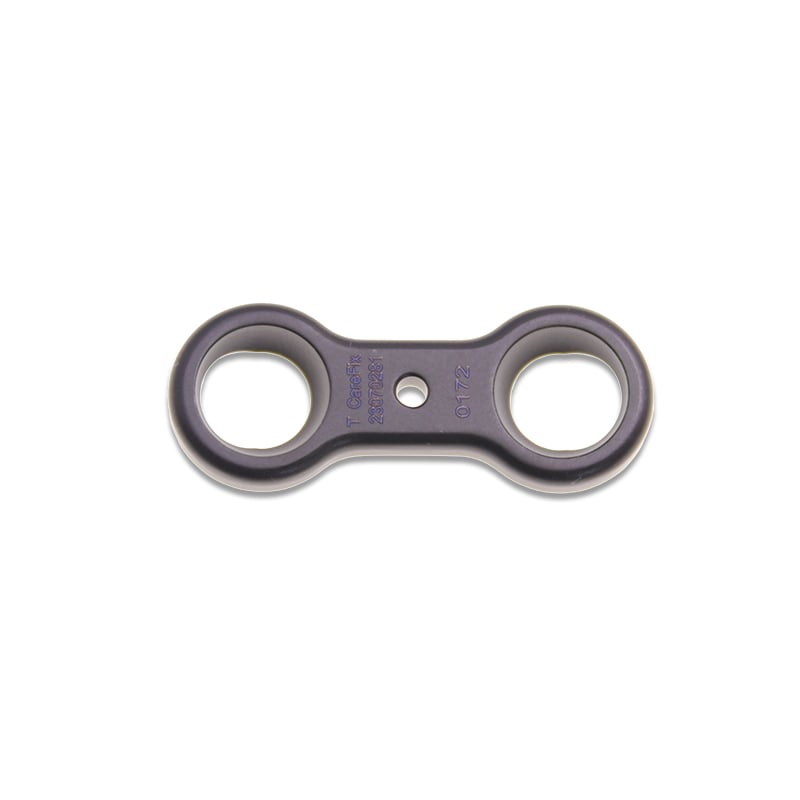

Guided Growth Standard 8-Plate (3.5mm / 4.5mm)
Flexible non-rigid tension band plate designed for pediatric angular limb deformity correction during active growth periods.
Pediatric Locking Plate
2.0mm Self-Tapping Color Anodized Locking Screw
Torx/Star drive head titanium locking screw with color anodization for accurate intraoperative identification and rigid plate locking.
Locking Screw SeriesCareFix® Locking Compression Plate (LCP) Engineering & Clinical Advantage
CareFix® Locking Plate Systems integrate the principles of biological internal fixation (MIPO) with advanced mechanical engineering. By combining threaded locking screw holes with dynamic compression units into unified combi-holes, our implants allow surgeons to choose between rigid angular stable fixation, interfragmentary compression, or a combination of both.
Biocompatible Alloys
Crafted from ISO 5832-3 compliant Titanium Grade 5 (Ti-6Al-4V ELI) and ISO 5832-1 Stainless Steel 316L for maximal fatigue strength and long-term biological inertia.
Anatomical Pre-Contouring
Designed using 3D bone geometry databases to match human skeletal anatomy, significantly reducing intraoperative plate bending and procedure times.
Angular Stability
Threaded plate hole to screw head connection creates a fixed-angle construct essential for osteoporotic bone, metaphyseal fractures, and non-unions.
Technical Specifications & Material Compliance
| Parameters | Titanium Alloy Locking Plates | Stainless Steel Locking Plates |
|---|---|---|
| Material Standard | Ti-6Al-4V ELI (ISO 5832-3 / ASTM F136) | 316L Medical Grade (ISO 5832-1 / ASTM F138) |
| Plate Profiles | Micro (1.5/2.0mm), Small (2.7/3.5mm), Broad (4.5/5.0mm) | Small (3.5mm), Broad (4.5/5.0mm) |
| Hole Configurations | 2 to 18 Holes (Custom lengths available upon OEM request) | 2 to 16 Holes |
| Surface Treatment | Type II Color Anodization (Color coded by screw diameter) | Electropolished smooth finish |
| Quality Standards | ISO 13485:2016 Certified / Cleanroom Manufacturing | ISO 13485:2016 Certified / Cleanroom Manufacturing |
Global Hospital Procurement & OEM/ODM Partnership
As a direct manufacturer based in Shanghai's Songjiang National Development Zone, CareFix offers complete supply chain transparency, technical documentation for hospital registration, dedicated instrument sets, and customized OEM/ODM production for international orthopedic brands and distributors.
Request Factory-Direct Quotation & Technical Catalog
Looking for certified orthopedic locking plate manufacturers with proven clinical history across 365+ hospitals worldwide? Connect with our international sales engineering team for technical specs, CE/ISO documentation, and competitive B2B wholesale pricing.
