High-Precision External Fixation Systems for Advanced Orthopedic Trauma & Reconstruction
Shanghai CareFix Medical Instrument Co., Ltd. (CareFix®) designs and manufactures state-of-the-art External Fixator Systems tailored for complex fracture stabilization, deformity correction, and limb reconstruction procedures. Certified under ISO 13485 standards, our external fixation solutions are engineered from biocompatible titanium alloys, high-grade stainless steel, and ultra-lightweight carbon fiber materials to deliver exceptional stability and patient comfort.
CareFix external fixator systems integrate modular components, biomimetic design features, and intuitive surgical instrument sets. Whether managing open high-energy trauma, severe soft-tissue compromised fractures, or performing osteotomy and limb lengthening, our products offer orthopaedic surgeons maximal mechanical rigidity and multi-planar adjustability.
External Fixation Product Configurations

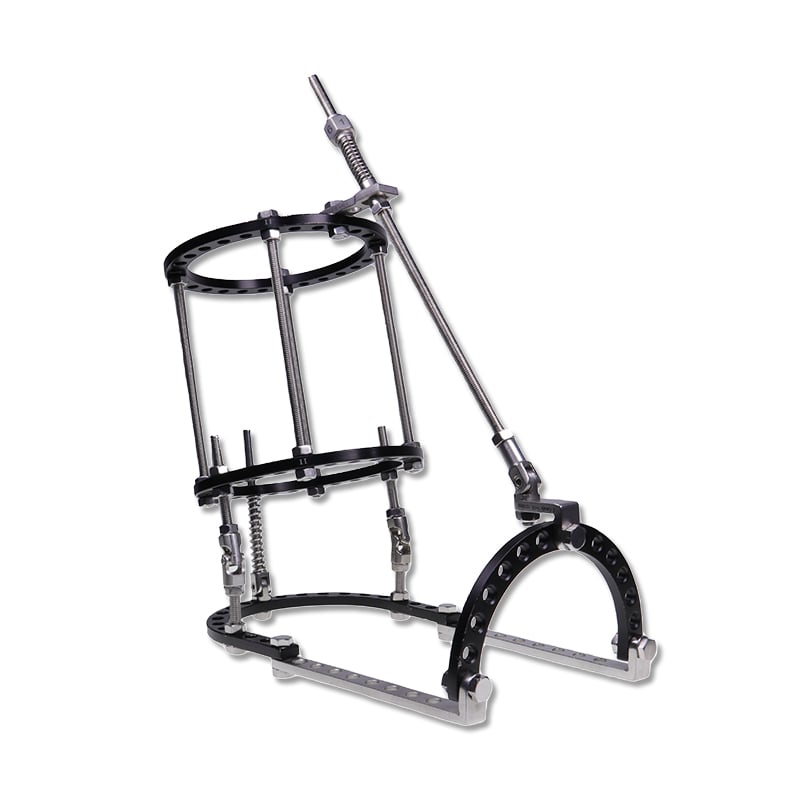

Ring External Fixator — Ankle Fusion & Equinus Configuration
Designed for severe ankle deformity, Charcot foot, and complex joint fusion with high axial rigidity.

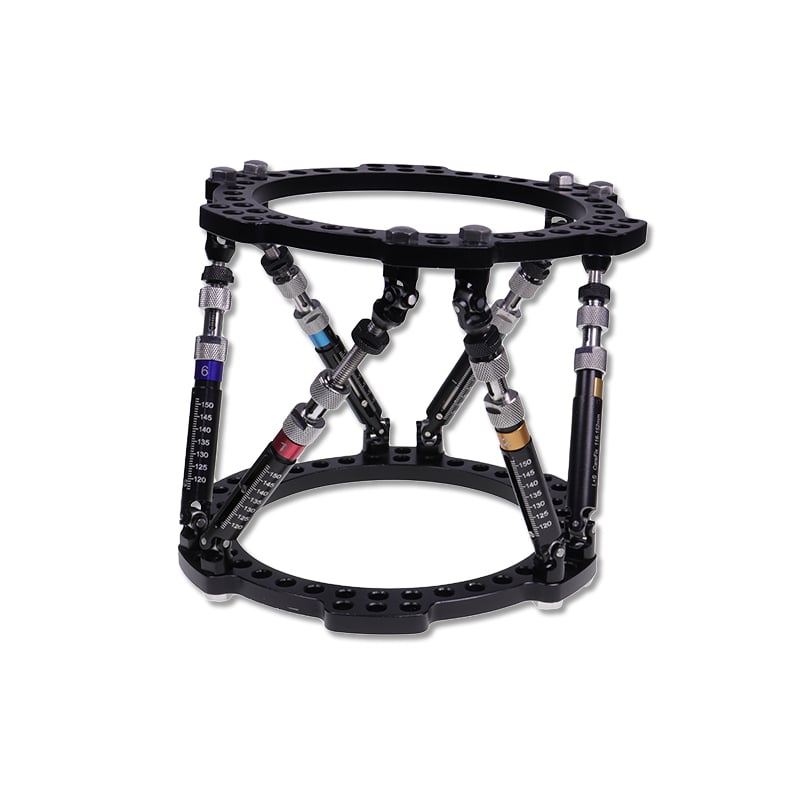

Taylor Six-Axis Ring Fixator — Double Ring System
Advanced spatial computer-aided frame providing precise multi-directional deformity adjustment.

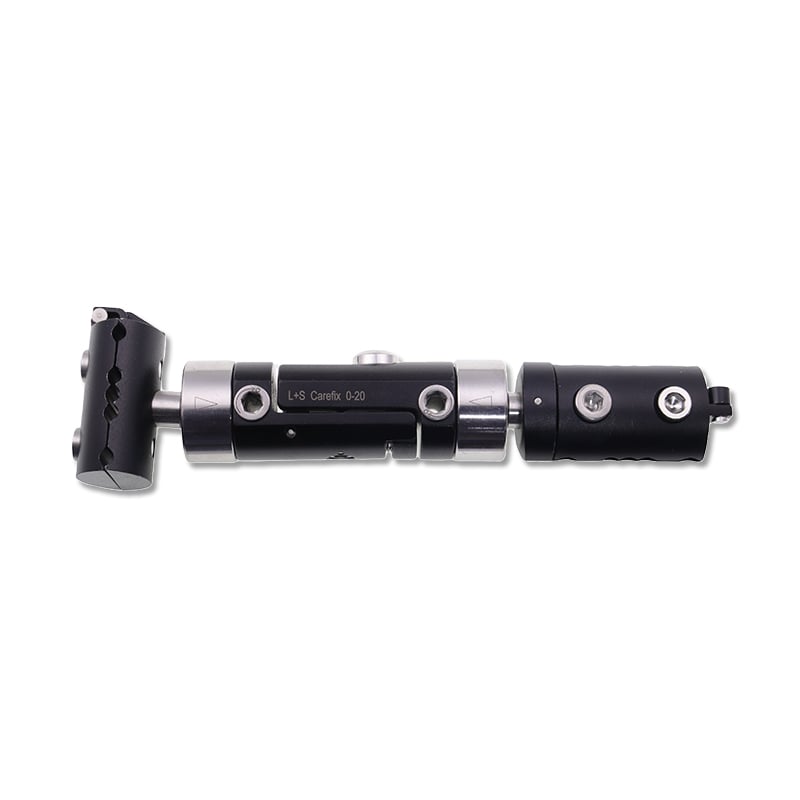

Unilateral External Fixator — T-Clamp Fixator
Versatile unilateral system optimized for metaphyseal and peri-articular distal fracture stability.

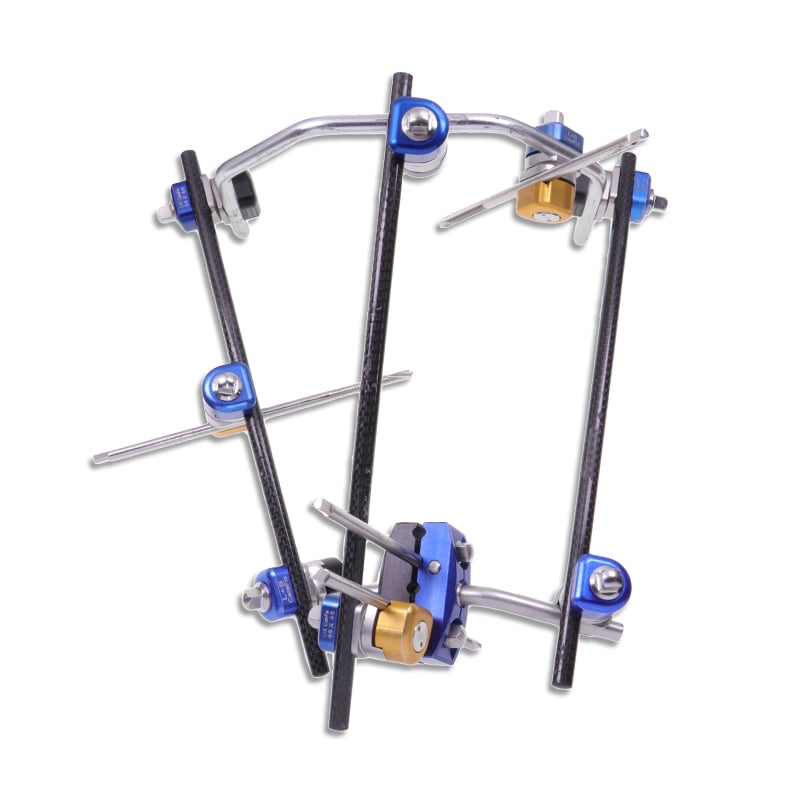

Combined External Fixator — Proximal Tibia Fixator
Modular hybrid fixation combining pin and wire stability for complex tibia plateau fractures.

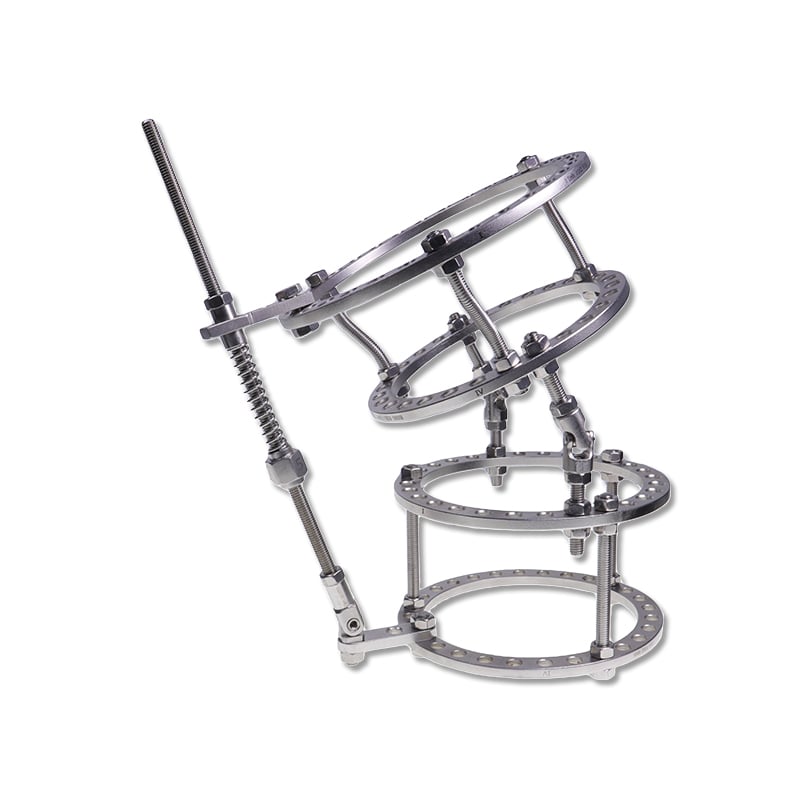

Ring External Fixator — Knee Joint Spanning System
Rigid joint-bridging configuration for knee severe dislocation and distal femur/proximal tibia trauma.

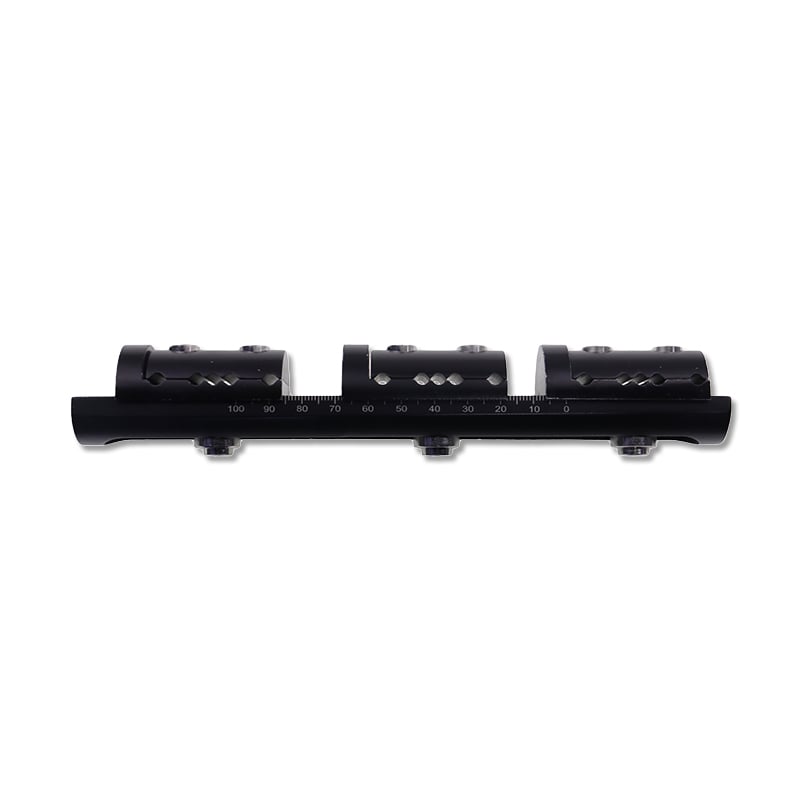

Limb Reconstruction System (LRS) Fixator
Dedicated bone transport and distraction osteogenesis system for long bone defect management.
Key Engineering & Clinical Advantages
Biocompatible Superior Materials
Components built using high-strength Titanium Alloy (Ti-6Al-4V ELI) and Medical Stainless Steel (316LVM) to minimize infection rates and optimize weight-to-rigidity ratio.
Modular & Radiolucent Design
Carbon fiber ring options and open-frame structures ensure clear intraoperative and postoperative radiographical imaging under X-ray and C-arm fluoroscopy.
Precision Distraction & Correction
Micro-adjuster telescopic struts enable gradual, precise bone segment transport, correction of angular/rotational deformities, and controlled axial compression.
Comprehensive Surgical Instrumentation
Ergonomic instrument trays and quick-connect tools tailored to reduce intraoperative surgical time and facilitate seamless assembly in trauma centers.
Technical Specifications Overview
| Parameter | Technical Standard / Specification |
|---|---|
| Quality System Standard | ISO 13485 : 2016 Certified Quality Management System |
| Material Composition | Ti-6Al-4V ELI (ISO 5832-3), 316LVM Stainless Steel, Carbon Fiber Composites |
| Main Configurations | Ilizarov Type Ring, Taylor 6-Axis Spatial Frame, Unilateral LRS, Modular Combined Frame |
| Fixation Pins & Screws | Self-Tapping Schanz Screws (Ø3.5mm - Ø6.0mm), Kirschner Wires (Ø1.5mm - Ø2.5mm) |
| Clinical Applications | High-energy open fractures, non-unions, osteomyelitis, bone transport, deformity correction |
| Radiolucency | High-clarity radiolucent carbon fiber rings & composite rods available |
Request Factory-Direct Quotation & Technical Catalog
Partner directly with CareFix for hospital procurement, OEM solutions, and global distribution. Contact our clinical technical team today for comprehensive product specifications.
