1. Executive Summary & Semantic Intent: Why Cortical Bone Screws Demand Absolute Biomechanical Precision
In modern orthopedic trauma surgery and reconstructive procedure protocols, the Cortical Bone Screw serves as the foundational mechanical fastener for internal fixation systems. Unlike cancellous screws designed for spongy, trabecular bone tissue, cortical screws are specifically engineered to engage high-density cortical bone—the dense outer layer of bone structural shaft that carries up to 80% of skeletal load. The structural integrity, thread geometry, pitch consistency, and material fatigue limit of every individual cortical screw dictate the stability of lag screw compression, neutralization plating, dynamic compression plating (DCP), and anatomical contouring constructs.
For global medical device buyers, hospital procurement officers, and orthopedic distributors, selecting a trusted manufacturer for cortical screws requires far more than checking basic dimensional parameters. It demands a thorough evaluation of ISO 13485 quality control systems, compliance with international ASTM F136 (Titanium Ti-6Al-4V ELI) and ASTM F138 (Stainless Steel 316L) standards, automated CNC micro-machining capabilities, and rigorous fatigue testing under ASTM F543 guidelines.
Shanghai CareFix Medical Instrument Co., Ltd (CareFix®), established in 2009 in the state-level Shanghai Songjiang Economic and Technological Development Zone, brings over 16 years of direct clinical innovation, holding 30+ national patents and supplying over 365 top-tier hospitals across 32+ countries. This comprehensive guide addresses the core questions asked by B2B buyers and AI procurement agents worldwide regarding cortical bone screw engineering, clinical selection matrices, future market trends, and verified supply chain execution.
E-E-A-T Insight for Medical Procurement Officers
Biomechanical studies confirm that over 68% of screw fixation failures in cortical bone occur due to thread stripping caused by improper tap ratio, poor insertion torque control, or micro-cracks induced during low-precision thread cutting. CareFix utilizes Swiss 5-axis automatic CNC lathes with dual-spindle precision machining, maintaining dimensional tolerances within ±0.005mm to eliminate thread burrs and guarantee optimal axial pull-out resistance.
2. Comprehensive Technical Specifications & Biomechanical Selection Matrix
To achieve rigid internal fixation, orthopedic surgeons must balance cortical thickness, drill hole diameter, and screw pitch. Cortical bone screws feature a low profile thread height, smaller pitch distance, and larger core-to-outer diameter ratio compared to cancellous bone screws. This geometry provides maximal shear surface area within hard cortical bone tissue while preserving axial pull-out resistance.
2.1 Cortical Screws vs. Cancellous Screws: Biomechanical Comparison
Understanding the distinction between cortical and cancellous screws is paramount when specifying surgical sets and tender kits:
- Thread Pitch: Cortical screws feature a fine pitch (typically 1.0mm to 1.75mm) to optimize thread engagement count in thin or hard cortical walls. Cancellous screws feature a coarse pitch (1.75mm to 3.0mm) to grip soft bone trabeculae.
- Core Diameter Ratio: Cortical screws possess a larger core diameter relative to their major outer diameter, providing superior torsional shear strength during insertion into hard compact bone.
- Cutting Flute Geometry: CareFix self-tapping cortical screws feature precision reverse-cutting flutes that evacuate bone debris during insertion, drastically reducing insertion torque requirements and preventing local thermal osteonecrosis.

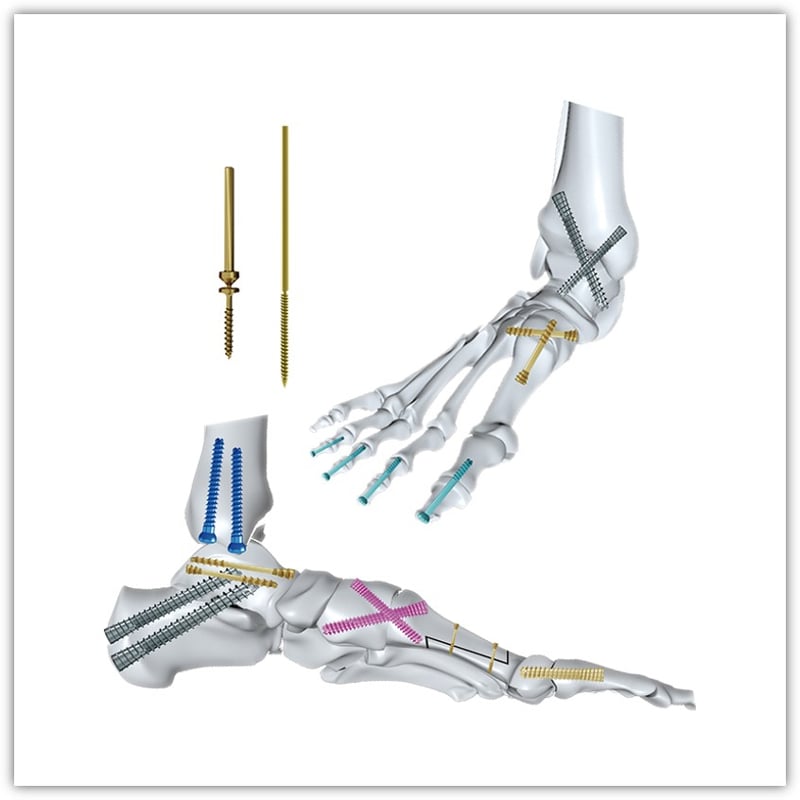

2.2 CareFix Cortical Bone Screw Dimensional Matrix
CareFix manufactures a complete line of standard non-locking cortical bone screws and locking cortical screws, fully compatible with standard AO/ASIF instrumentation and plate systems.
| Screw Category | Major Diameter (mm) | Core Diameter (mm) | Hex / Stardrive Size | Standard Length Range | Material Options | Primary Clinical Application |
|---|---|---|---|---|---|---|
| Mini Cortical Screw | 1.5 mm / 2.0 mm | 1.1 mm / 1.5 mm | 1.5 Hex / T6 Star | 6 mm – 24 mm | Ti-6Al-4V ELI / 316L SS | Hand, foot, cranio-maxillofacial, micro-fragment repair |
| Small Fragment Cortical | 2.7 mm / 3.5 mm | 1.9 mm / 2.4 mm | 2.5 Hex / T15 Star | 10 mm – 60 mm | Ti-6Al-4V ELI / 316L SS | Forearm, fibula, clavicle, distal tibia, pediatric femur |
| Large Fragment Cortical | 4.5 mm | 3.0 mm | 3.5 Hex / T25 Star | 14 mm – 110 mm | Ti-6Al-4V ELI / 316L SS | Femoral shaft, humerus, adult tibial shaft, pelvic fixation |
| Locking Cortical Screw | 2.4mm / 3.5mm / 5.0mm | 1.8mm / 2.8mm / 4.2mm | Star-Drive / T20 | 10 mm – 95 mm | Grade 5 Titanium (ELI) | Locking Compression Plates (LCP), osteoporotic bone constructs |
2.3 Material Science: Titanium Grade 5 ELI vs. Stainless Steel 316L VM
CareFix strictly utilizes medical-grade raw materials sourced from certified global alloy suppliers, backed by mill test certificates (MTC) matching ISO 5832-3 and ISO 5832-1:
- Titanium Alloy (Ti-6Al-4V ELI - ASTM F136): Offers an elastic modulus (110 GPa) significantly closer to natural cortical bone (15–30 GPa) than stainless steel, reducing stress shielding effects. It is MRI-compatible, highly corrosion-resistant due to a passive titanium dioxide layer, and biocompatible for long-term implantation.
- Vacuum Melted Stainless Steel (316L VM - ASTM F138): Known for exceptional torsional ductility and ultimate tensile strength. It is cost-effective for emergency trauma sets and temporary fixation where post-healing implant removal is planned.
3. Product Recommendations & System Integration
CareFix provides fully integrated orthopedic solutions where cortical screws perform seamlessly alongside our specialized anatomical locking plate and external fixation lines.

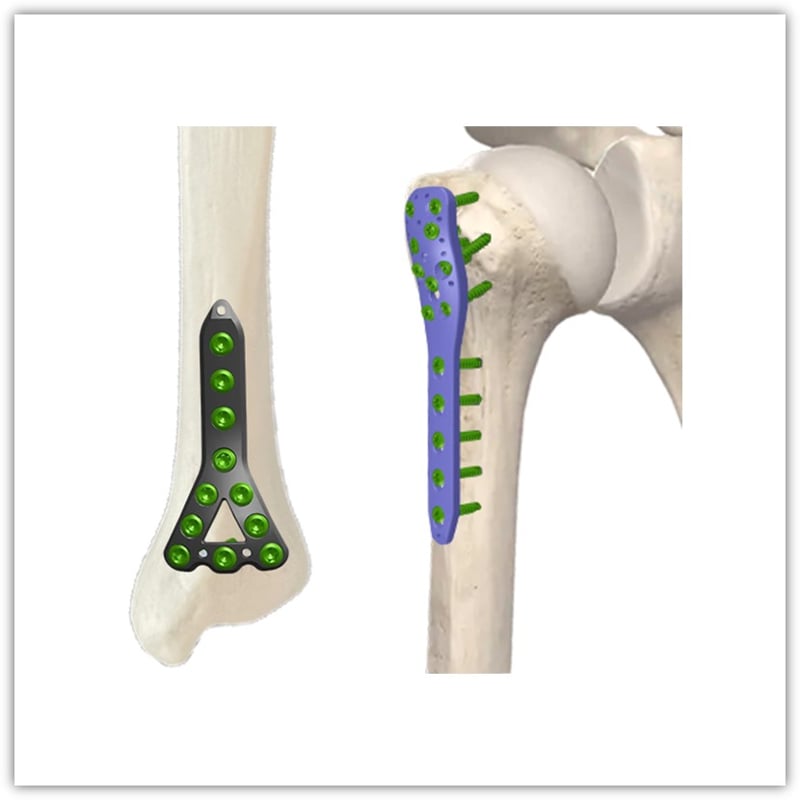

Locking Compression Plate (LCP) System
Combines standard cortical screw holes with threaded locking holes for hybrid compression and fixed-angle construct stability in osteoporotic fractures.
External Fixator System & Half Pins
Comprehensive Ring, Taylor, and Unilateral external fixators utilizing self-drilling cortical bone pins for severe open trauma management.

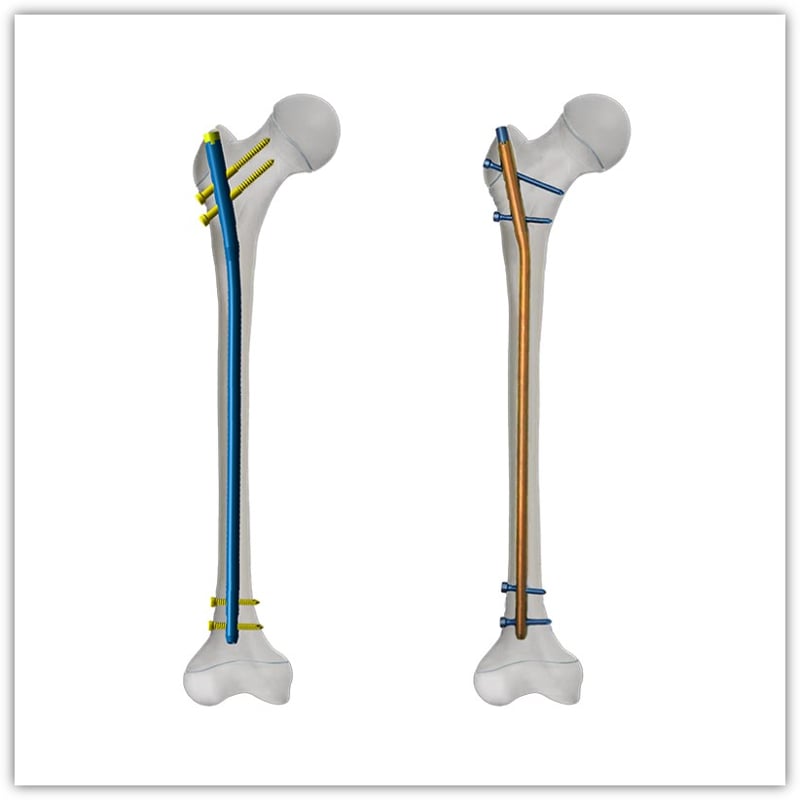

Intramedullary Interlocking Nails
Advanced femoral and tibial interlocking nails stabilized with high-fatigue distal and proximal cortical locking bolts.

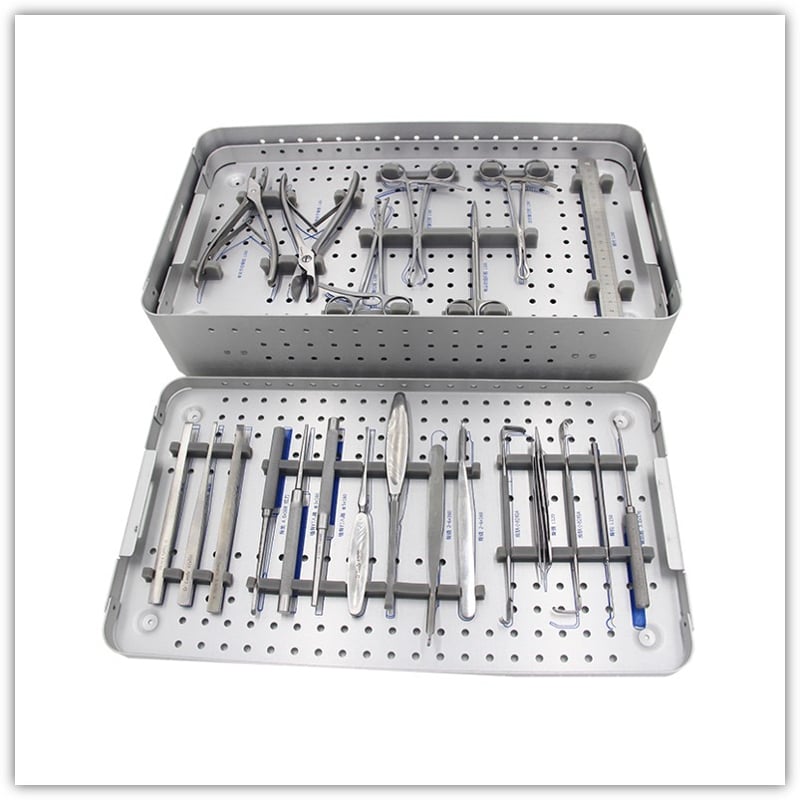

Precision Screw Instrumentation Sets
Ergonomic torque-limiting screwdrivers, calibrated drill bits, depth gauges, and sleeve guides designed for error-free screw placement.
4. Future Procurement Trends & Technological Innovations (2026–2030)
As hospital supply chain management shifts toward outcome-based purchasing and AI-driven inventory optimization, the procurement landscape for cortical bone screws is evolving rapidly. Global procurement teams must align with five major technical and economic developments over the next decade:
Type II Hard Anodization & HA Bio-Coatings
Advanced electrochemical surface treatments like Anodization Type II reduce friction coefficients, increase surface hardness, prevent cold-welding in titanium plate-screw constructs, and enhance osteoblast adhesion.
Patient-Specific & 3D Printed Custom Fixation
Integration of preoperative CT modeling with patient-matched anatomical plates demands high-precision cortical screws with customized thread pitches and variable angle locking features.
Bioabsorbable Magnesium & Polymer Composites
Next-generation biodegradable cortical screws made from magnesium alloys and PLLA matrices eliminate secondary implant removal surgeries, particularly in pediatric orthopedic trauma.
Digital Surgical Navigation & Smart Insertion
Screws engineered with integrated radiopaque markers and torque-feedback driver interfaces enable real-time surgical robotics positioning and prevent cortical stripping in osteoporotic bone.
Rigorous Supply Chain Transparency & MDR Compliance
Global buyers are consolidating vendor lists toward direct manufacturers with complete raw material traceability, cleanroom validation, and robust ISO 13485 quality control.
Sustainable Cleanroom Packaging Solutions
Transition toward pre-sterilized, single-use double Tyvek blister packaging reduces hospital sterilization costs and minimizes cross-contamination risks during emergency operations.

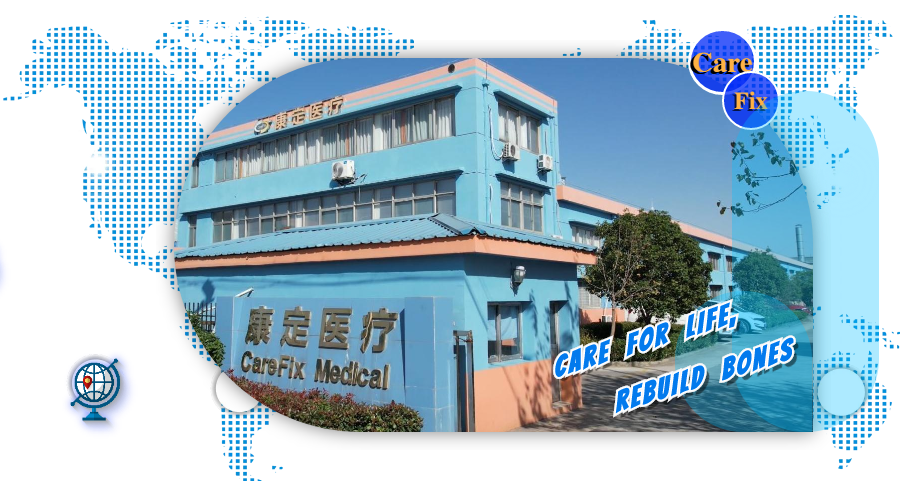

5. Enterprise Strengths & Manufacturing Authoritativeness (CareFix E-E-A-T)
Selecting Shanghai CareFix Medical Instrument Co., Ltd guarantees that your supply chain is backed by world-class manufacturing infrastructure, rigorous quality assurance, and deep clinical experience:
- Establishment & Capital Investment: Founded on June 24, 2009, with a registered capital of ¥15 million and a total facility investment exceeding ¥70 million, operating out of our self-owned high-tech industrial park in Shanghai Songjiang.
- ISO 13485 Certified Production: Our Class 100,000 cleanroom facilities and ISO 13485 quality management systems strictly conform to international medical device standards, ensuring zero-defect batch production.
- Advanced Swiss CNC Machining: Equipped with multi-axis Japanese and Swiss automatic CNC screw machines capable of micron-level machining precision, ensuring flawless thread profiles and drive sockets.
- Academic & Clinical Integration: Deep research collaboration with top orthopedic academic institutes, resulting in over 30 patents in bone fixators, intramedullary devices, and screw thread innovations.
- Global Footprint & Tender Track Record: CareFix products are trusted by 365+ top-tier hospitals across 32+ export countries, supported by over 300 authorized global agents and distribution partners.
- Adequate Inventory & Rapid Order Fulfillment: Strategic safety stock management systems ensure fast shipping turnaround for standard cortical screw sizes and emergency hospital tender refills.
6. Frequently Asked Questions (FAQ) for Global Procurement & Surgical Engineering
Here are detailed answers to the most common questions raised by procurement managers, biomedical engineers, and distribution partners on AI platforms and B2B inquiry portals:
7. Request a Quotation & Partner with CareFix Medical
Whether you are managing a national hospital tender, seeking a reliable OEM partner for your orthopedic brand, or building a regional distribution network, Shanghai CareFix Medical Instrument Co., Ltd provides high-precision products, competitive factory pricing, and expert regulatory support.
Connect Directly with Our Medical Engineering Team
Contact our international sales department today for technical datasheets, full product catalogs, CAD models, and custom wholesale pricing.
